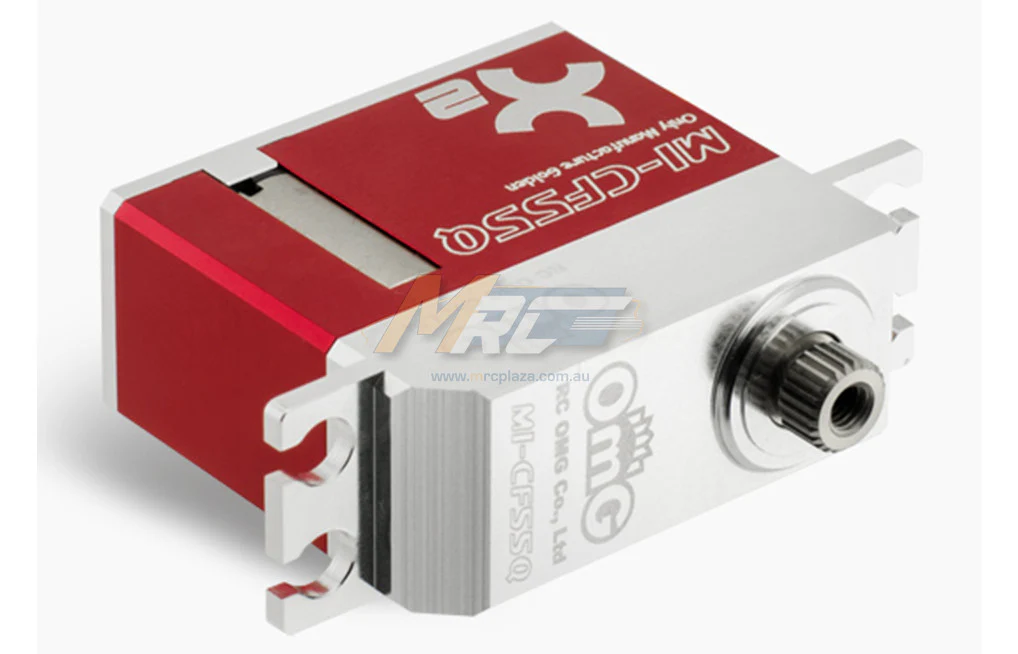

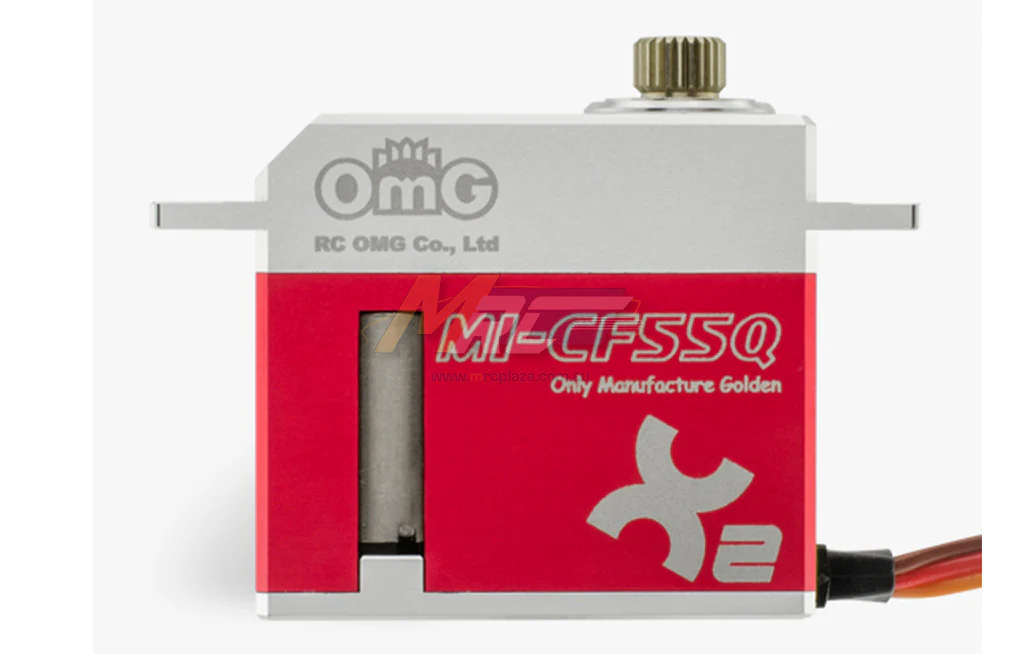

OMG H2-MI-CF55Q Helicopter Tail Mini Servo
OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo
Feature:
- Specially designed to operate your class 500 helicopter tail and make it locked in and consistent
- Reinforced titanium gears to ensure a low maintenance experience and resistance during crashes
- Capable of running on voltages up to 8.4V
- Quiet, fast, precise, durable and has minimal power consumption
- Gears are titanium coated specially for superior endurance and durability
Specification:
- Type: Digital
- Operating Voltage Range: 6.0 - 8.4Volts DC
- Bearing Type: Dual Ball Bearings
- Speed (s/60°@6.0V/7.4V/8.4V): 0.065 / 0.06 / 0.05
- Torque oz./in. (6.0V/7.4V/8.4V): 56 / 70 / 76
- Torque kg./cm. (6.0V/7.4V/8.4V): 4 / 5 / 5.5
- Size : 36Â x 15.2 x 28.8mm
- Weight: 35g
- Motor Type: Coreless motor
- Control System: +Pulse Width Control 1500µsec Neutral
- Required Pulse: 3-5 Volt Peak to Peak Square Wave
- Operating Temperature Range(℃): -10° - 50°
- Idle Current (@6.0V/7.4V/8.4V): 20mA
- No Load Running Current (6.0V/7.4V/8.4V): 80mA/100mA
- Stall Current (6.0V/7.4V/8.4V): 1600mA/2400mA
- Dead Band Width: 4µs
- Potentiometer Type: Rotating(Max.220°)
- Connector Wire Length: 11.8 in. / 300 mm. OMG wire
- Connector Wire Gauge: 25 AWG
- Connector Type: JR
- Gear Type: Titanium gears
- Frequency: 330Hz
- Shaft: 5.9mm 25T
What is included:
- OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo (1 pc)
$41.26
OMG H2-MI-CF55Q Helicopter Tail Mini Servo—
$41.26
More Images
OMG H2-MI-CF55Q Helicopter Tail Mini Servo
OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo
Feature:
- Specially designed to operate your class 500 helicopter tail and make it locked in and consistent
- Reinforced titanium gears to ensure a low maintenance experience and resistance during crashes
- Capable of running on voltages up to 8.4V
- Quiet, fast, precise, durable and has minimal power consumption
- Gears are titanium coated specially for superior endurance and durability
Specification:
- Type: Digital
- Operating Voltage Range: 6.0 - 8.4Volts DC
- Bearing Type: Dual Ball Bearings
- Speed (s/60°@6.0V/7.4V/8.4V): 0.065 / 0.06 / 0.05
- Torque oz./in. (6.0V/7.4V/8.4V): 56 / 70 / 76
- Torque kg./cm. (6.0V/7.4V/8.4V): 4 / 5 / 5.5
- Size : 36Â x 15.2 x 28.8mm
- Weight: 35g
- Motor Type: Coreless motor
- Control System: +Pulse Width Control 1500µsec Neutral
- Required Pulse: 3-5 Volt Peak to Peak Square Wave
- Operating Temperature Range(℃): -10° - 50°
- Idle Current (@6.0V/7.4V/8.4V): 20mA
- No Load Running Current (6.0V/7.4V/8.4V): 80mA/100mA
- Stall Current (6.0V/7.4V/8.4V): 1600mA/2400mA
- Dead Band Width: 4µs
- Potentiometer Type: Rotating(Max.220°)
- Connector Wire Length: 11.8 in. / 300 mm. OMG wire
- Connector Wire Gauge: 25 AWG
- Connector Type: JR
- Gear Type: Titanium gears
- Frequency: 330Hz
- Shaft: 5.9mm 25T
What is included:
- OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo (1 pc)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo
Feature:
- Specially designed to operate your class 500 helicopter tail and make it locked in and consistent
- Reinforced titanium gears to ensure a low maintenance experience and resistance during crashes
- Capable of running on voltages up to 8.4V
- Quiet, fast, precise, durable and has minimal power consumption
- Gears are titanium coated specially for superior endurance and durability
Specification:
- Type: Digital
- Operating Voltage Range: 6.0 - 8.4Volts DC
- Bearing Type: Dual Ball Bearings
- Speed (s/60°@6.0V/7.4V/8.4V): 0.065 / 0.06 / 0.05
- Torque oz./in. (6.0V/7.4V/8.4V): 56 / 70 / 76
- Torque kg./cm. (6.0V/7.4V/8.4V): 4 / 5 / 5.5
- Size : 36Â x 15.2 x 28.8mm
- Weight: 35g
- Motor Type: Coreless motor
- Control System: +Pulse Width Control 1500µsec Neutral
- Required Pulse: 3-5 Volt Peak to Peak Square Wave
- Operating Temperature Range(℃): -10° - 50°
- Idle Current (@6.0V/7.4V/8.4V): 20mA
- No Load Running Current (6.0V/7.4V/8.4V): 80mA/100mA
- Stall Current (6.0V/7.4V/8.4V): 1600mA/2400mA
- Dead Band Width: 4µs
- Potentiometer Type: Rotating(Max.220°)
- Connector Wire Length: 11.8 in. / 300 mm. OMG wire
- Connector Wire Gauge: 25 AWG
- Connector Type: JR
- Gear Type: Titanium gears
- Frequency: 330Hz
- Shaft: 5.9mm 25T
What is included:
- OMG H2-MI-CF55Q Class 500 Helicopter Tail Mini Servo (1 pc)
